The transition from rigid structures, traditional aluminum foil, and porous paper packaging to flexible films requires overcoming a major engineering paradox: reducing material weight without compromising oxygen or moisture barrier integrity. Packaging engineers and procurement teams face rising logistics costs, stricter sustainability mandates phasing out polyvinylidene chloride (PVDC) coatings, and the requirement for high-speed Vertical and Horizontal Form Fill Seal (VFFS/HFFS) machine compatibility. Securing a reliable packaging substrate that satisfies these overlapping demands dictates the success of modern product supply chains.

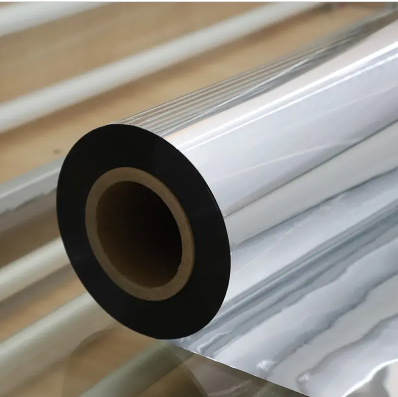

Metallized BOPP film bridges the gap between cost-efficiency and high-barrier performance. It functions as a chlorine-free, eco-friendly alternative to legacy barrier materials. You achieve a significantly lower density and a much higher yield than competing substrates when specifying this material. Simultaneously, it maintains rigorous FDA and EU compliance for direct food contact applications. We will break down the manufacturing physics, substrate comparisons, and engineering troubleshooting necessary to deploy this polymer effectively across industrial and retail applications.
Yield & Cost Efficiency: With a density of just 0.91 g/cm³, Metallized BOPP offers a superior area-to-weight ratio compared to PET, directly reducing total cost of ownership (TCO) and shipping weight.
Barrier Multiplier Effect: The vacuum metallization process deposits a 30–50 nanometer aluminum layer, improving base BOPP oxygen transmission rates (OTR) by 100–500x and moisture vapor transmission rates (WVTR) by 50–200x.
Optical Density (OD) Trade-offs: Selecting the correct OD is application-dependent; standard food packaging requires an OD of 2.0–2.6 to balance flexibility and barrier, while specialty electronics (capacitor-grade) target ≥ 3.0 at the cost of brittleness and compromised heat-sealability.
High-Speed Machinability: Modern variants feature ultra-low Seal Initiation Temperatures (SIT) down to 83°C and high hot tack (>250 g/25mm) to prevent micro-leaks in high-speed manufacturing environments.
Biaxially Oriented Polypropylene (BOPP) forms the structural foundation of the packaging film. Manufacturers stretch the base polypropylene resin extensively in two distinct directions during the extrusion phase. First, they stretch it in the machine direction (MD) through a series of heated rollers. Next, they stretch it in the transverse direction (TD) using a heated tenter frame. This biaxial orientation process forcefully aligns the internal polymer chains. It establishes the base film's baseline mechanical strength, dimensional stability, optical clarity, and puncture resistance. These material traits remain absolute prerequisites before any subsequent metal deposition can successfully occur without shrinking or warping the base web.
Metallization simply cannot occur in standard atmospheric conditions. The entire process requires extreme vacuum pressures inside a heavily sealed, industrial-scale steel chamber. Engineers maintain pressure levels below 4 x 10⁻⁴ mbar, consistently hovering between 10⁻⁵ and 10⁻⁶ torr. This intense vacuum environment serves two primary functions. First, it eliminates atmospheric air molecules and airborne contaminants that would disrupt the vapor path. Second, it ensures uniform, defect-free aluminum vapor deposition. If any residual oxygen remains in the chamber during the process, it instantly oxidizes the vaporized aluminum. This unwanted oxidation severely ruins the target barrier properties and turns the resulting coating transparent rather than reflective.
The core metallization mechanism relies heavily on managing extreme thermal dynamics. Specialized crucible technology drives the entire vapor generation process. These evaporation boats consist of specialized Boron Nitride and Titanium Diboride composite ceramics. They operate at sustained temperatures reaching 1500°C. Continuous 1.8mm pure aluminum wire spools feed directly into these superheated ceramic boats at precisely controlled rates. Upon contact, the aluminum sublimes instantly. It transitions directly from a solid metal wire into a gaseous, high-energy vapor cloud. This cloud radiates upward, completely ready for substrate deposition onto the moving polymer web.
Packaging engineers must carefully navigate the exact thickness of the deposited metal layer. They control the aluminum thickness strictly between 30 and 300 nanometers (equivalent to 300–500 Ångströms). Thicker metal layers consistently deliver superior oxygen and moisture barrier test results in a laboratory setting. However, they severely compromise fold flexibility out in the real world. Thickly coated layers suffer from immediate flex-cracking during bag forming, pallet stacking, and long-haul transport. Thinner layers retain maximum material flexibility but introduce high risks of microscopic pinholing, which lets oxygen seep into the package. Finding the exact nanometer threshold for a specific product dictates the commercial viability of the final flexible pouch.
Operating a high-speed metallizer requires exact sequence management. Factory operators follow strict mechanical and chemical procedures to convert raw rolls into high-barrier products. The standard sequence proceeds through the following controlled steps:
Loading the untreated BOPP mother roll into the massive unwinding station inside the depressurized chamber.
Evacuating the chamber using a combination of roughing pumps, Roots blowers, and oil diffusion pumps to reach the target 10⁻⁵ torr pressure.
Circulating liquid nitrogen through internal cryopanels to freeze and trap any residual water vapor out of the vacuum environment.
Activating the polymer surface tension via inline plasma or corona discharge units immediately prior to the coating zone.
Sublimating the aluminum wire across the heated ceramic evaporation boats to generate a steady, uniform metal vapor cloud.
Passing the activated web tightly over a heavily chilled drum (operating at -15°C) to condense the aluminum instantly upon contact.
Scanning the freshly deposited metal layer with continuous optical densitometers to verify thickness uniformity across the web width.
Rewinding the finalized metallized roll under strict automated tension controls to prevent telescopic shifting or web wrinkling.
Raw polypropylene film naturally repels external metal coatings due to its low surface energy. Intense surface preparation remains mandatory to prevent the metal from rubbing off. Manufacturers typically use intense corona or flame treatment on the fast-moving web. This specific bombardment pushes the surface tension to ≥ 40–42 dynes per centimeter. Higher surface energy ensures the aluminum vapor bonds securely and permanently at a molecular level. For high-end applications like sensitive electronics packaging, advanced plasma treatment provides deeper, more uniform surface activation. Operators also frequently apply proprietary inorganic or organic chemical primers prior to the vacuum chamber to further stabilize the final optical density against severe mechanical stress.
The highly treated BOPP web travels through the vacuum chamber at speeds frequently exceeding 600 meters per minute. It passes directly over the primary chilled cooling rollers. Simultaneously, the hot aluminum vapor cloud rises steadily from the 1500°C evaporation boats positioned below. As the gaseous aluminum strikes the chilled BOPP surface, it undergoes instant condensation. This rapid temperature drop halts the molecular movement, locking the aluminum into a tight, densely packed crystalline metal structure. The internal cooling rollers prevent the intense radiant heat generated by the evaporation boats from melting, warping, or stretching the delicate polypropylene base.
Optical Density serves as the undisputed primary metric for measuring metal thickness and verifying barrier quality. Modern metallizing facilities utilize continuous in-line infrared sensors to measure light transmittance through the moving web in real-time. Operators define the measurement physics using a standard, globally recognized formula: Optical Density = log10 (100 / Transmittance (%)). Continuous OD monitoring correlates directly to the final barrier consistency of the roll. It determines third-party laboratory QA pass or fail metrics long before the rolls exit the machine and reach the final slitting or rewinding departments.
Choosing the correct metallized substrate requires analyzing core material density, tensile strength thresholds, and target barrier requirements. Procurement teams frequently face difficult choices between competing polymers. Below is a detailed engineering comparison of the most common flexible packaging films used today.
| Substrate Material | Density (g/cm³) | Primary Structural Advantage | Core Technical Limitation | Ideal Commercial Application |
Metallized BOPP | 0.91 | Extreme moisture barrier, superior cost-to-yield ratio. | Lower heat tolerance compared to PET structures. | Snack packaging, dry bulk foods, pressure-sensitive labels. |
Metallized BOPET (PET) | 1.40 | High tensile strength, superior oxygen/aroma barrier, heat resistance. | Higher density means significantly lower yield per kilogram. | Roasted coffee beans, hot-fill liquid products, retort pouches. |
Metallized CPP | 0.90 | Extreme flexibility, massive heat-seal tear strength. | Poor structural rigidity and minimal stiffness. | Inner sealant web for heavy, drop-resistant stand-up pouches. |
Metallized BOPA (Nylon) | 1.15 | Unmatched baseline gas blocking and high puncture resistance. | High susceptibility to rapid moisture degradation (hydrophilic). | Vacuum packs utilized heavily in temperature-controlled supply chains. |
BOPP clearly holds an exceptional baseline moisture barrier and a massive financial yield advantage for procurement departments. Its base density sits at just 0.91 g/cm³. This mathematical reality means buyers secure significantly more square meters of packaging material per kilogram compared to standard PET. However, PET provides a mathematically superior oxygen and aroma barrier out of the box. Furthermore, PET possesses exceptionally high tensile strength and broad high-temperature tolerance. Because it resists melting under intense heat, PET remains the undisputed ideal choice for industrial hot-fill food processes or retort pouches that undergo harsh thermal sterilization inside autoclaves.
BOPP inherently offers excellent rigidity, high stiffness, and structural support. It handles the immense tension of high-speed printing presses flawlessly without stretching out of register. Cast Polypropylene (CPP) entirely lacks this structural rigidity. Instead, CPP delivers extreme physical flexibility and unparalleled heat-seal strength. Because it stretches easily, packaging engineers rarely specify CPP as the primary outer printed layer. They deploy it primarily as the heavy-duty inner sealant web inside large, liquid-filled stand-up pouches. In these multi-layer laminations, BOPP handles the outer printed structure and moisture defense, while the CPP layer handles the structural seam integrity and drop resistance.
BOPA provides unmatched, heavy-duty gas barrier properties across the packaging sector. It blocks oxygen transfer aggressively, performing far better than any standard polypropylene derivative. However, BOPA hides a severe engineering vulnerability. It acts as a hydrophilic material, meaning it readily absorbs water from the surrounding air. BOPA is highly susceptible to severe moisture degradation. Humid environments compromise its structural dimensions and barrier integrity rapidly. This inherent chemical flaw makes BOPP the safer, much more stable choice for damp or humid geographic supply chains. BOPP predictably maintains its dimensions and barrier ratings regardless of extreme external atmospheric moisture swings.
Paper packaging aligns strongly with specific rustic aesthetic trends and certain compostability goals, but it fails technically in high-moisture commercial environments. Traditional unlined paperboard structures rapidly absorb ambient moisture and readily allow aggressive odor transfer between pallets. These act as fatal flaws that lead directly to rapid food spoilage, rancidity, and drastically reduced retail shelf life. Metallized BOPP provides an absolute defense against both moisture absorption and external odor contamination. It isolates the internal food product completely from external environmental factors, ensuring long-term crispness and flavor retention.
Premium metallized films reach exceptional, laboratory-grade barrier ceilings when manufactured under strict tolerances. Modern Oxygen Transmission Rates (OTR) can drop as incredibly low as <0.1 cc/m²/day under specialized testing conditions. Water Vapor Transmission Rates (WVTR) regularly measure below <0.1 gm/m²/day. These distinct testing metrics translate into highly tangible business value for consumer packaged goods companies. High barrier properties lock in volatile, easily degraded coffee bean aromas for several months. They extend standard potato chip crispness significantly across global supply chains. They also reliably prevent dangerous mineral oil migration originating from recycled cardboard secondary packaging from leaching into the primary food product.
Navigating exact metalized BOPP film printability heavily dictates the final visual success of the retail package on the shelf. The deposited metal layer requires highly specific surface tension controls to accept commercial inks. It generally offers universal compatibility with complex UV, water-based, and heavily pigmented solvent inks. Press operators run these specialized films across advanced flexographic, rotogravure, and high-speed offset machinery daily. However, commercial success depends entirely on applying specialized transparent top-coats and chemical primers. These liquid chemical anchors ensure high-speed ink adhesion. They completely prevent the fragile metal from flaking off during aggressive rewind processes or rough handling during transit.
Throughput speeds on the factory floor dictate ultimate packaging profitability. Advanced polymer formulations featuring ultra-low Seal Initiation Temperatures (SIT) operating at exactly 83°C drastically expand the thermal operating window on high-speed production lines. Operating sealing jaws at lower temperatures inherently reduces factory energy consumption and actively mitigates catastrophic plastic melting or machine jamming. Furthermore, these highly engineered films feature specialized high hot tack values consistently exceeding 250 g/25mm. High hot tack ensures the formation of immediate, unbreakable hermetic seals in vertical gravity-drop applications. It stops heavy bulk products from violently blowing out the bottom seal before the plastic fully cools and sets.
Polymer engineers formulate highly specific film variants to meet distinct operational demands across varying industries. Non-Heat Sealable variants act perfectly as glossy outer wrappers or combine seamlessly with specialized cold-seal adhesives used for heat-sensitive chocolate bars. Conversely, high tensile BOPP film receives intensive mechanical stretching to resist severe structural stress. It easily withstands high-frequency mechanical handling and actively prevents long-haul transit ruptures. Matte metalized versions provide a heavily sought-after anti-glare, understated premium aesthetic designed specifically for high-end retail shelves and boutique cosmetic lines.
Cavitated white opaque films cleverly combine high external opacity with a bright, reflective internal background. Manufacturers specify these primarily for confectionary wrappers and ice cream novelties. They aggressively protect light-sensitive ingredients against UV-induced lipid oxidation, which causes rapid rancidity. Furthermore, the global market currently demands heavy integration of Post-Consumer Recycled (PCR) content and Oxo-Biodegradable resin additives. These modern variants incorporate anywhere from 30% to 90% recycled resins or specialized degradable polymers. They align precisely with emerging, heavily regulated global mono-material circular economy standards without sacrificing barrier performance.
The massive commercial labeling sector relies heavily on core metallized properties to achieve brand visibility. Pressure Sensitive Labels (PSL) demand exceptional baseline moisture resistance and tear strength. They absolutely dominate the beverage, shampoo, and cosmetic bottle applications where shower condensation or cold-room storage readily destroys standard paper labels. Wrap-around labels represent another massive volume category for BOPP. These require exceptionally high stiffness and absolute mold resistance to function properly. They are engineered and optimized specifically for high-speed, reel-fed labeling machinery operating effortlessly at speeds exceeding thousands of bottles per minute.
Selecting the correct overall micron thickness directly separates packaging success from catastrophic failure. Thin films ranging precisely from 8 to 15 microns serve a highly specific converting purpose. They operate perfectly when deploying metallized BOPP lamination film as a hidden middle barrier layer. Conversion engineers purposefully bury this fragile, ultra-thin layer inside heavy paperboard composites, sandwich wrappers, or lightweight multi-layer snack pouches. Thick films ranging from 20 to 50 microns operate entirely differently. They act as standalone structures. They provide the mandatory high stiffness, dead-fold characteristics, and puncture resistance required for heavy stand-up pouches, pet food bags, and industrial adhesive tapes.
Microscopic pinholing completely destroys product shelf life by creating clear pathways for oxygen ingress. The root causes usually trace back to an excessively low target Optical Density setting or the presence of microscopic dust particles floating inside the vacuum chamber during deposition. Corrective actions require immediate mechanical intervention. Maintenance engineers must drastically increase inline corona treatment energy levels to ensure stronger metal-to-polymer adhesion. They must rapidly enhance internal chamber air filtration systems. Finally, operators must manually elevate the target OD settings on the ceramic evaporation boats to force the deposition of a slightly thicker, more robust aluminum layer.
Visual defects like thick black streaks severely ruin print registration and destroy retail aesthetics. The root engineering causes involve highly inconsistent web tension pulling through the chamber or misaligned evaporation boats spitting molten aluminum unevenly. If the web flutters even slightly over the chilled drum, the metal vapor deposits in erratic microscopic waves. Corrective actions require precise mechanical calibration. Technicians must physically optimize the geometric layout of the titanium diboride boats. They must also calibrate and stabilize the heavy tension rollers across the entire web path to ensure perfectly flat film presentation during the actual coating phase.
Laminated layers suddenly peeling apart in the field cause catastrophic, highly expensive product recalls. The root cause usually involves profound chemical adhesive incompatibility with the microscopically thin aluminum oxide layer present on the film. Standard solvent-less adhesives sometimes fail entirely to grip the high-energy metal surface. Corrective actions require strict chemical engineering adjustments. Converting facilities must immediately upgrade to specialized, chemically aggressive two-part polyurethane adhesive systems. They should also systematically apply high-grade adhesion-promoting primers directly over the metal layer immediately before the web enters the heavy lamination nip rollers.
A brilliant, mirror-like film entering the laminator sometimes emerges looking dull, gray, and completely visually unappealing. The root causes generally involve utilizing a rough adhesive texture or executing overly aggressive thermal curing protocols in the drying ovens. Thick, highly rigid adhesives physically distort and crush the fragile nanometer-thick metal layer during the pressing phase. Corrective actions demand extreme precision from the machine operator. Facilities must switch immediately to smooth-flow, extremely low-viscosity adhesive formulas. Furthermore, operators must enforce highly strict coat-weight controls, reducing the sheer volume of liquid adhesive applied to the delicate metal surface, keeping it between 1.5 to 2.0 grams per square meter (gsm).
Your flexible packaging procurement specifications directly control factory floor efficiency and final retail product longevity. Transitioning to advanced barrier films fundamentally solves the persistent problem of achieving high moisture defense without adding excessive material weight or high costs.
Audit your current flexible packaging roll-stock specifications immediately to determine if the area-to-weight ratio allows a cost-saving transition from heavy PET to lighter BOPP alternatives.
Request updated, highly detailed Technical Data Sheets (TDS) and continuous third-party MOCON barrier test lab results to verify actual OTR and WVTR metrics on all newly proposed barrier substrates.
Review your exact Optical Density requirements against your final application, strictly separating the robust flexural demands of food bags from the rigid density requirements of specialty electronic capacitors.
Coordinate directly with your chemical adhesive supplier to perfectly match your lamination glues with the specific surface energy and chemical properties of ultra-thin aluminum oxide coatings.
Upgrade older factory form-fill-seal packaging machinery parameters to successfully run low-temperature substrates featuring a Seal Initiation Temperature below 85°C to aggressively reduce energy consumption and eliminate equipment jamming.
A: Metallized BOPP deposits a nanometer-thin vaporized layer of aluminum onto a flexible polymer base. Traditional aluminum foil operates as a thick, solid, micron-heavy sheet of metal. BOPP provides a vastly superior low-density yield of 0.91 g/cm³, cutting material procurement costs and heavy shipping weight. Furthermore, it easily resists extreme flex-cracking, whereas rigid aluminum foil quickly develops severe pinholes when folded or crushed during palletized transit.
A: Optical Density serves as a mathematical measurement indicating exactly how much light passes through the metallized film. An OD reading of 2.2 blocks approximately 99.3% of external light. In standard food packaging, maintaining an OD between 2.0 and 2.6 represents the optimal manufacturing sweet spot. It provides an aggressively robust moisture and oxygen barrier while safely maintaining enough physical flexibility to prevent the fragile metal layer from shattering during pouch formation.
A: Yes, it remains highly viable within modern mechanical recycling pathways. Because the deposited metal layer measures mere nanometers thick, industrial recyclers easily treat the bulk structure as a standard polypropylene (PP) material during the melting phase. It fully supports the global push toward streamlined mono-material packaging structures. It acts as an excellent, easily recyclable, and completely chlorine-free alternative to environmentally destructive PVDC chemical barrier coatings.
A: The standard, highly reliable commercial usage window remains roughly 3 to 6 months from the manufacturing date. Over extended storage time, the high surface tension originally achieved via factory corona treatment naturally dissipates and degrades. If left sitting in warehouse storage for excessive periods, the measured dyne levels drop significantly. This chemical degradation directly causes severe ink adhesion failures during the printing process and dangerously weak bond strengths during adhesive lamination.
A: Printing directly onto the metalized side requires exceptionally strict chemical management. Standard clear BOPP readily accepts printing inks easily with minimal preparation. The delicate metal layer, however, easily flakes or lifts completely off the plastic during aggressive, high-speed flexographic or rotogravure processes. Printing operators must utilize specific top-coats and highly specialized chemical primers to firmly anchor the liquid ink to the slick metal surface.
A: Sudden loss of external gloss strictly occurs due to applied chemical or intense mechanical stress during the lamination phase. Rough, exceptionally high-viscosity liquid adhesives physically crush and distort the ultra-thin metal layer as it passes through heavy nip rollers. Additionally, applying excessively thick adhesive coat weights or utilizing extreme thermal oven curing protocols visibly dulls the reflective finish. Switching immediately to a smooth-flow, low-viscosity adhesive system usually resolves this specific visual defect.
