Excellent printability in packaging lamination depends less on visual shine and more on stable converting behavior. For metallized BOPP, a printable structure needs retained surface treatment, uniform metal deposition, compatible inks and adhesives, controlled web tension, and a seal window that does not distort the laminate. When those factors match the pack design, the film delivers bright graphics, good ink anchorage, reliable lamination bonds, and practical oxygen and moisture barrier at a favorable cost per square meter. When they do not match, failures appear quickly as rub-off, metal dusting, delamination, edge cracking, or poor registration. The most effective selection method is application-first: define product sensitivity, shelf-life target, line speed, seal demand, and laminate structure, then match film grade, gauge, treatment side, and barrier tier to that use. That approach prevents overbuying, reduces waste on press, and improves package durability after slitting, pouching, transport, and retail handling.
High Yield Economics: With a density of about 0.91 g/cm³, metallized BOPP delivers significantly more area per kilogram than VMPET at roughly 1.4 g/cm³, lowering cost per square meter.
Barrier That Fits Most Dry Food Use Cases: Standard to ultra-high barrier metallized BOPP grades can deliver dramatic improvements over plain BOPP, while top-end grades reach OTR <0.1 cc/m²/day and WVTR <0.1 g/m²/day under controlled test conditions.
Printability Depends on Surface Preparation: Corona, plasma, or flame treatment is what makes polypropylene receptive enough for metal adhesion, ink anchorage, and lamination bond development.
Machine Speed Is a Material Selection Issue: Heat sealable metallized BOPP film grades with SIT down to 83–85°C help reduce distortion, wrinkling, and seal inconsistency on high-speed HFFS/VFFS lines.
Gauge Matters More Than Many Buyers Assume: 18 micron metallized BOPP film remains the mainstream balance of cost, barrier, and handling; 20 micron metallized BOPP film adds stiffness and crack resistance for larger packs or tougher handling.
Sustainability Claims Need Scrutiny: Metallized layers are extremely thin and low in weight, but most multi-material laminates are not truly closed-loop recyclable; the practical route today is often downgauging, down-cycling, or moving toward Mono-PP structures.

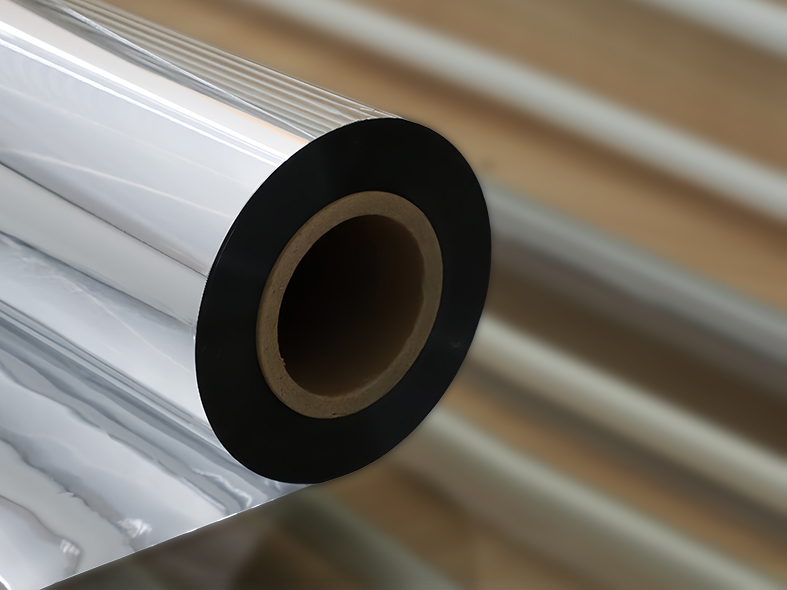

Metallized BOPP Films start with biaxially oriented polypropylene. The base film is stretched in machine and transverse directions, which increases stiffness, gloss, dimensional stability, and moisture resistance. That base matters because a stable web holds register better, tracks better through the press, and resists wrinkling during lamination and rewinding.
Vacuum metallization adds a nanometric aluminum layer to the treated film surface. That layer gives metallic appearance, light protection, and strong barrier improvement. It also creates the reflective background that makes reverse-printed graphics look brighter and cleaner. Untreated PP lacks the surface energy needed for dependable wetting, so it often shows poor ink anchorage and inconsistent lamination bond development. Treated metallized BOPP solves that limitation when the correct side is printed or laminated.
The material fits best in dry snacks, biscuits, bakery, confectionery, and other shelf-stable products. Those markets need a balance of graphics, machinability, barrier, and price. They usually do not need the higher thermal resistance associated with PET or foil structures.
Surface energy can fall during storage, especially in warm or humid warehouses. When retained treatment drops below the ink system requirement, wetting becomes uneven. The first symptoms are mottling, weak tape adhesion, and poor rub resistance. After lamination, those early problems can turn into ink pick-off or halo defects around solid areas.
Metal adhesion depends on base film treatment, clean deposition conditions, and careful winding. Aggressive slitting, poor roll edges, and repeated flexing can fracture the aluminum layer. Once that happens, reflective uniformity drops and localized barrier loss follows. The defect is often most visible at slit edges, gussets, folds, and seal transitions.
Converters often blame the film first, but delamination usually comes from several variables acting together. Common causes include wrong treatment orientation, under-cured adhesive, solvent retention, contaminated surfaces, or adhesive chemistry that does not match the metal side. A visually acceptable laminate on day one can fail later during pouching or warehouse aging.
Print quality depends on tension stability, roll hardness, gauge consistency, and coefficient of friction. Telescoped rolls, cinching, and low-stiffness webs can cause wrinkles, bounce, and tracking drift. Those issues show up as color misregister, distorted graphics, and scratches on the metal surface.
A laminate may print and bond well, yet still fail on the packaging line. If the seal layer needs too much heat, the web can whiten, shrink, or crack near the seal zone. That risk increases on high-speed HFFS and VFFS equipment where dwell time is short and temperature is pushed higher to maintain throughput.
In vacuum metallization, aluminum wire is evaporated in a chamber operating near 10-5 to 10-6 Torr. The vapor condenses onto the moving BOPP web as it passes over a chilled drum. Typical metal thickness is about 30 to 100 nm, often expressed as 300 to 500 Å. That layer is thin, but it changes performance sharply when deposition is uniform.
Polypropylene is non-polar and hydrophobic by nature. Inks, adhesives, and deposited aluminum do not anchor well to a low-energy surface. Surface treatment creates polar groups that improve wetting and bonding. The result is better metal adhesion, stronger lamination bonds, and more reliable print anchorage. Treatment level must be checked not only at dispatch, but also at the point of converting.
Optical density, or OD, is often used as a practical indicator of metal laydown. Higher and more consistent OD usually supports better opacity and better barrier. Still, OD alone cannot reveal every failure mode. Pinholes, scratched metal, poor winding, and flex-cracking can destroy barrier even when OD appears acceptable. That is why OD data should be reviewed together with OTR, WVTR, and visual inspection results.
Meaningful barrier claims cite ASTM D3985 for oxygen transmission rate and ASTM F1249 for water vapor transmission rate. Metallization can improve oxygen barrier roughly 100 to 500 times and moisture barrier roughly 50 to 200 times over plain BOPP, depending on film design and test conditions. The relevant point for procurement is not the best published number. It is whether the supplied grade keeps enough barrier after slitting, lamination, sealing, and distribution.
| Control factor | What it affects | Typical failure if ignored | Recommended check |
Retained treatment | Ink wetting and adhesive anchorage | Ink pick-off, weak bond | Dyne testing before printing or lamination |
Optical density consistency | Metal appearance and barrier uniformity | Cloudy zones, barrier variation | Inline OD profile and reel-to-reel review |
Gauge tolerance | Tension behavior and registration | Wrinkles, tracking drift | Cross-web and roll-length thickness data |
Seal initiation temperature | Packaging line speed and distortion risk | Seal whitening, edge cracking | SIT, hot tack, and seal curve data |
Metal adhesion | Barrier retention during flexing | Dusting, pinholes, dull streaks | Rub, tape, and flex-crack testing |
Most snack and dry-food laminates protect the print by placing it inside the structure. The outer clear web carries the reverse print, and the metallized layer behind it provides reflective depth. That construction improves scuff resistance because the ink is not exposed to external abrasion. It also reduces direct food-contact concerns.
Metallized BOPP grades are not interchangeable on both surfaces. One side may be optimized for adhesive anchorage, another for heat sealing, and another for sandwich lamination. A converter needs documented side identification on the roll label, data sheet, and trial record. Many avoidable delamination claims begin with a simple orientation error.
Flexographic and gravure printing are common, but the correct chemistry depends on treatment level, drying conditions, and final use. Dry lamination, solvent-free lamination, and extrusion lamination each place different stress on the film surface. Adhesive selection should consider bond strength, cure speed, solvent retention risk, resistance to metal pick-off, and final seal temperature. A film that prints beautifully but scuffs or delaminates in pouch making is not a successful specification.
Low and stable COF helps transport the web cleanly through the press and packaging line.
Even rewind tension reduces cinching, telescoping, and edge damage.
Controlled drying prevents residual solvent from weakening later lamination bonds.
Correct nip pressure improves adhesive laydown without embossing defects.
A suitable seal window limits web distortion near the jaws.
Confirm retained treatment and side orientation on the delivered roll.
Run a short press trial to check wetting, adhesion, and rub resistance.
Lamination-test the exact adhesive system at expected line speed.
Allow full cure before final bond testing and pouch conversion.
Verify seal behavior and package appearance on the actual machine.
Heat sealable metallized BOPP film is widely used where the metallized web must also seal. In snack structures, lower SIT can reduce distortion and help maintain package appearance at high output. Some grades are designed for higher hot tack. Others emphasize stronger metal adhesion and better crack resistance after handling. Those differences matter more than the generic label of "sealable."
When PE, CPP, or another inner web handles hermetic sealing, a non-sealable metallized BOPP layer can be chosen mainly for barrier, appearance, and stiffness. Dual-treated grades are also used in sandwich laminations where the film sits between webs and both bond interfaces matter. That design is common when a pack needs a metallic look without making the metallized layer the seal surface.
Normal barrier grades are often enough for biscuits, crackers, and many short-to-medium shelf-life snacks. Higher barrier grades fit products with stricter moisture pickup limits or more oxygen sensitivity. Ultra-high barrier versions can approach very low OTR and WVTR values under controlled conditions, but they cost more and may be unnecessary for high-turn products with short distribution cycles.
High gloss metallized BOPP film supports maximum reflectivity, bright shelf impact, and strong metallic contrast. Matte metallized BOPP film creates a softer visual finish, reduces glare, and suits premium branding styles. The aesthetic choice also influences scuff visibility, color build, and final appearance under store lighting.
The industry often centers on two mainstream gauges. 18 micron metallized BOPP film is typically chosen for balanced yield, barrier, handling, and economics. 20 micron metallized BOPP film adds stiffness and can improve resistance to flex-related defects in larger packs or rougher distribution channels. Thinner gauges may reduce cost, but they demand tighter tension control and can be less forgiving during slitting and pouching.
A common structure is clear printed BOPP / extruded PE / metallized BOPP. The outer BOPP carries the reverse print and delivers gloss. The metallized BOPP adds barrier and metallic depth. This design is economical, light in weight, and well suited to chips, biscuits, and similar products where moisture control and shelf appearance matter more than high heat resistance.
For tougher applications, converters may use clear printed BOPP / adhesive / VMPET / adhesive / PE or CPP. That route can improve oxygen barrier, aroma protection, and thermal stability. The trade-off is higher basis weight, higher cost, and more complex end-of-life handling. It should be specified for real need, not habit.
Clear BOPP / metallized BOPP / PP-based seal layers move the structure closer to all-PP design. That can support downgauging and may align better with some recycling frameworks. Even so, actual recoverability still depends on local collection, sorting technology, inks, adhesives, and design-for-recycling rules.
Define product sensitivity to oxygen, moisture, light, and aroma loss.
Set the shelf-life target using real distribution and storage conditions.
Map the packaging line window, including seal temperature and speed.
Choose print method, adhesive system, and required surface treatment.
Approve only after press, lamination, and packaging-line trials.
Metallized BOPP usually wins on yield because its density is about 0.91 g/cm³, much lower than metallized PET at roughly 1.40 g/cm³. That difference matters in high-volume snack packaging, where area per kilogram strongly affects delivered cost. Metallized CPP can offer seal advantages in some structures, but it is generally less stiff and can be harder to control on fast lines.
| Feature | Metallized BOPP | VMPET | Metallized CPP |
Density and yield | High yield per kilogram | Lower yield per kilogram | High yield, but thicker structures are common |
Moisture barrier | Very strong for dry foods | Strong | Moderate to good, grade dependent |
Oxygen and aroma barrier | Good to very good | Often stronger | Usually not the first choice |
Stiffness and handling | Good for high-speed lines | Very good, but needs seal layer | More stretch-prone |
Direct seal capability | Available in sealable grades | Usually requires another sealant layer | Often used for sealing |
Best fit | Dry foods, snacks, cost-sensitive laminates | Higher heat or aroma demands | Seal-focused structures |
The procurement decision therefore depends on total structure behavior, not only barrier headlines. If a package needs economical metallic appearance, high line speed, and strong moisture protection, metallized BOPP is often the most efficient choice. If the product is highly aroma-sensitive or exposed to higher heat, VMPET may justify its higher cost.
OTR and WVTR with full test method and conditioning details.
Optical density range, gloss, haze, and appearance standards.
SIT, hot tack, seal strength, and full seal curve.
Treatment level at dispatch and retained treatment expectations.
Gauge tolerance, tensile data, elongation, and flex-crack resistance.
Food-contact declarations and migration compliance statements.
Roll dimensions, core size, winding direction, and roll hardness limits.
Poor slit edges can start micro-cracks in the metal layer. Excessive rewind tension can create telescoping, cinching, or dead folds that later disturb printing and lamination. Stable roll build is therefore part of printability. A good film on a poorly wound roll may still fail in production.
Press trial: confirm wetting, color holdout, adhesion, and rub resistance.
Lamination trial: measure initial and cured bond strength.
Packaging trial: test COF, seal window, tracking, and output rate.
Aging check: review bond retention and crack resistance after storage.
Metallized BOPP performs best in product categories where moisture barrier, shelf impact, and machine efficiency are decisive. Common examples include potato chips, extruded snacks, biscuits, bakery items, confectionery, chocolate overwraps, powdered dry mixes, and some label constructions. It can also serve certain coffee and aroma-sensitive dry goods, although those packs often require closer barrier validation against VMPET-based alternatives.
The material is less suitable for retort, hot-fill, or high-temperature sterilization. It is also not the default answer for every aroma-sensitive application. The right question is not whether metallized BOPP is good in general. The right question is whether the specific grade keeps its print, bond, and barrier performance through the actual conversion and distribution cycle.
The aluminum layer in metallized film is extremely thin, often less than one percent of total structure weight. That fact alone does not make a finished laminate recyclable in practice. Inks, adhesives, mixed polymer layers, and weak collection infrastructure still limit real recovery. For many markets, the most credible environmental gain today comes from downgauging, reducing material complexity, and moving toward PP-dominant structures where performance still meets product needs.
Claims should therefore distinguish between technical possibility and commercial reality. A laminate may be designed closer to mono-material principles, but it still depends on collection, sorting, and reprocessing systems. Procurement teams generally benefit more from honest design simplification than from broad recyclability claims that the local waste stream cannot support.
For dry-food lamination, metallized BOPP remains one of the most effective combinations of print quality, moisture barrier, machinability, and cost efficiency. Performance depends on matching treatment, gauge, sealability, adhesive system, and line conditions to the actual pack design.
Shortlist the barrier tier and gauge based on product sensitivity and pack size.
Confirm treatment side, retained dyne level, OD range, and seal data with the supplier.
Run press, lamination, and packaging trials using the intended ink and adhesive system.
Approve the structure only after bond, rub, and crack-resistance checks after aging.
A: The reflective metal layer increases brightness and visual depth behind the reverse print. It also keeps the ink protected inside the laminate, which improves scuff resistance and helps preserve graphic quality during transport and filling.
A: Yes, some grades allow it, but direct printing requires the correct treated surface, suitable ink chemistry, and rub-resistance validation. It should never be assumed based only on appearance or generic film type.
A: Corona treatment raises surface energy by creating polar groups on polypropylene. That improves wetting and helps inks, adhesives, and metal anchor more securely. Better anchorage lowers the risk of ink failure, metal dusting, and bond loss.
A: High gloss grades maximize reflectivity and metallic brightness. Matte grades reduce glare and create a softer premium look. The choice is mainly aesthetic, but it also affects scuff visibility, color appearance, and shelf presentation.
A: The 18 micron grade is the common balance of yield, barrier, and handling. The 20 micron grade provides more stiffness and often better crack resistance, which can help in larger bags or rougher distribution conditions.
A: A sealable grade is preferred when the metallized web must act as part of the package seal layer. A non-sealable grade fits structures where PE, CPP, or another inner web provides the sealing function.
