Flexible packaging teams replace foil with metallized polyester when they need lower package weight, lower total cost, and better line efficiency without giving up practical shelf life. The core qualification risk is simple: barrier data taken from a pristine flat sheet does not predict the barrier that remains after printing, lamination, pouch making, sealing, transport, and retail handling. That gap explains many oxygen, moisture, and light failures in commercial packs.
Metallized PET Films perform well when the metal layer is uniform, the optical density is controlled, the laminate is designed around the product risk, and post-conversion testing confirms retained barrier. They perform poorly when teams buy only on flat-sheet OTR, ignore WVTR test conditions, or overlook flex cracking, seal integrity, and metal bond. The practical evaluation standard is not the master roll alone. It is the converted pack in its real storage and distribution environment.
Barrier must be evaluated after conversion, not just on the master roll: A pristine metallized layer can lose barrier performance after flexing, sealing, and transport; ASTM F392 Gelbo flex results are often more decision-useful than flat-sheet OTR/WVTR alone.
Optical density is a purchasing control point, not just a lab number: OD directly affects light blocking, metal uniformity, and barrier consistency; premium grades typically target OD 2.2–2.8+ depending on end use.
12 micron metallized PET film can lower cost per pack without automatically lowering protection: When tensile performance, metal bond, and laminate design are right, downgauging improves roll yield, freight efficiency, and uptime.
Met PET is rarely a standalone solution: Real-world performance depends on the full laminate—outer print web, adhesive, barrier layer, and sealant layer—not just the metallized PET itself.
Met PET is a strong middle ground, not a universal winner: It outperforms many transparent films on barrier and light protection, but foil still leads on absolute barrier, while ALOx/SiOx lead where transparency, microwaveability, or metal detection matter.

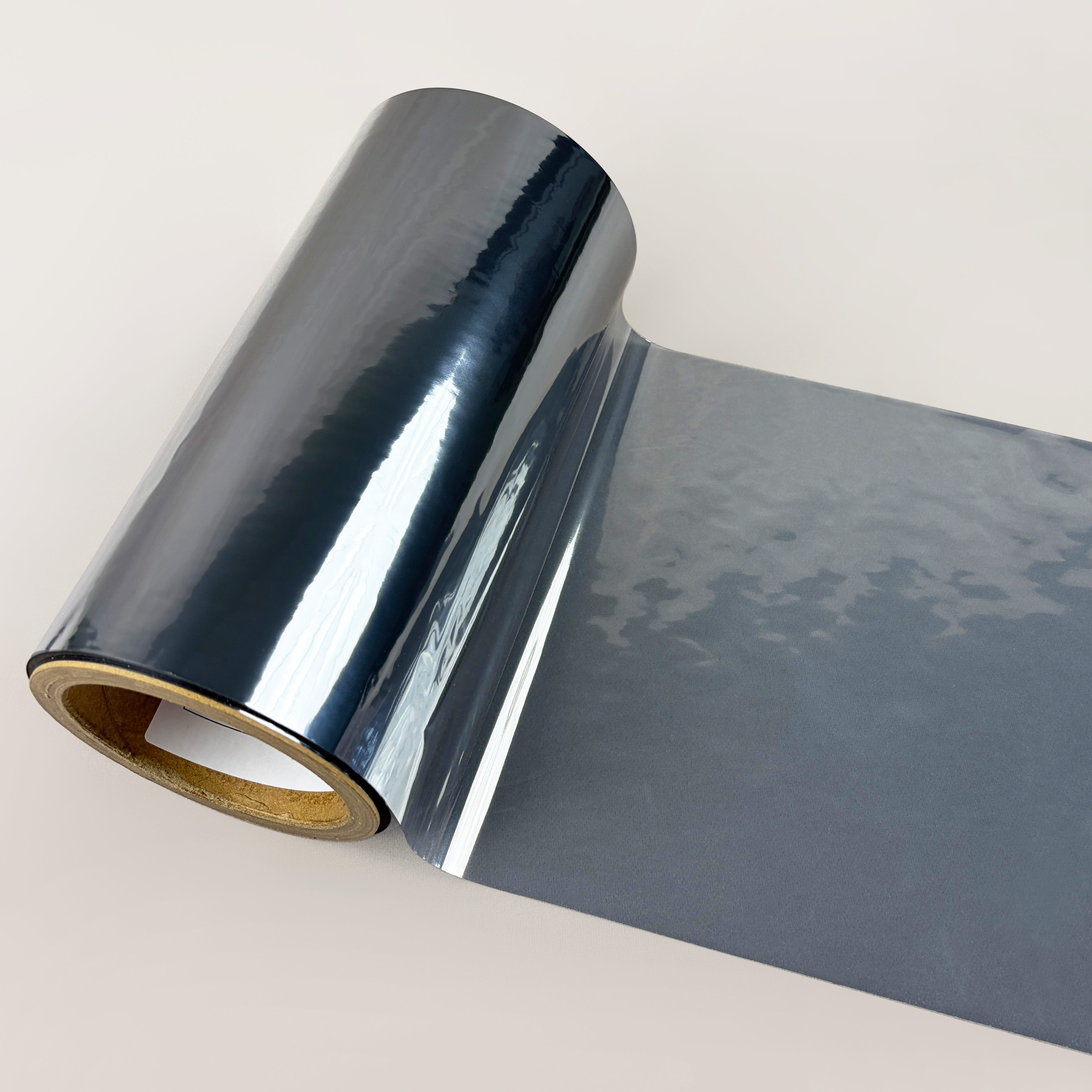

Metallized PET starts with biaxially oriented polyester film, usually called BOPET. In a vacuum chamber, aluminum is vaporized and condensed onto the moving film web at roughly 10-4 to 10-5 mbar. The deposited metal layer is extremely thin, often around 30 to 50 nanometers, yet it can reduce transmission dramatically when it is continuous and well bonded.
Barrier consistency depends on several production controls:
Vacuum stability during deposition
Web cleanliness and surface preparation
Web temperature and winding tension
Deposition rate and metal thickness uniformity
Base film quality, including gauge consistency and surface defects
The aluminum layer works because it forces oxygen and water vapor to follow a far more difficult path than they would through plain PET. Light transmission also drops sharply because the metal reflects and absorbs visible and UV radiation. A very thin oxide layer forms on exposed aluminum in air, which stabilizes the surface, but that oxide does not repair cracks, pinholes, or poor metal coverage.
High barrier is not a marketing adjective by itself. It is a measurable range tied to test conditions. For oxygen, suppliers commonly report OTR at 23°C and 0% RH using ASTM D3985 or an ISO equivalent. Strong flat-sheet metallized PET grades often fall around 0.5 to 2.0 cc/m2/day, though the exact figure depends on gauge, optical density, and test method. For water vapor, WVTR is often reported at 37.8°C and 90% RH using ASTM F1249. Well-made commercial grades can fall below 1.0 g/m2/day under those severe conditions.
Those numbers matter only when they are compared correctly. Plain PET has much higher oxygen and moisture transmission than metallized PET, but the comparison must always include thickness, temperature, humidity, and whether the sample was tested as a flat sheet, a laminate, or a finished pouch.
A common downgauged option is 12 micron metallized PET film. It can reduce material usage and increase roll yield, but only when tensile behavior, curl control, metal bond, and post-conversion barrier meet the application target. A 12 µm film is not automatically equal to a thicker legacy structure just because the flat-sheet OTR looks similar.
Optical density is one of the most useful purchasing controls because it reflects metal coverage and coating uniformity. Commercial grades often sit around OD 2.2 to 2.5. Premium grades may run above OD 2.8. Higher OD does not guarantee flawless barrier, but low or inconsistent OD often signals weak light blocking and greater lot-to-lot variation.
Light resistance matters as much as oxygen barrier in many categories. Properly metallized film can block up to 99.99% of UV and visible light, which helps slow lipid oxidation, vitamin loss, color shift, flavor fade, and off-odor development. Light barrier can be the primary requirement for edible oils, dairy-adjacent powders, nutraceuticals, flavor concentrates, and sensitive personal care formulas.
Matte metallized PET film adds shelf differentiation, but the matte look should never be treated as proof of barrier quality. Buyers still need OD data, metal bond data, print anchorage confirmation, and post-conversion barrier retention results.
Barrier data becomes useful only when the test method and conditions are disclosed. Procurement and R&D teams should request the following as a minimum:
ASTM D3985 or equivalent for oxygen transmission rate
ASTM F1249 or equivalent for water vapor transmission rate
ASTM D1434 or equivalent for additional gases such as CO2 or nitrogen, when MAP or coffee structures are involved
ASTM F392 for Gelbo flex resistance when the pack will be folded, vibrated, or parcel-shipped
Metal bond or adhesion test data from the same production lot
Suppliers that provide only a headline barrier number without method, humidity, or sample state make comparison difficult and qualification slower.
Test conditions: Oxygen and moisture barrier shift with temperature and relative humidity. A low OTR at 23°C does not predict WVTR at 37.8°C and 90% RH.
Film thickness: A 12 µm structure and a 15 to 25 µm structure can behave very differently after conversion, even when flat-sheet data appears close.
Film state: Flat-sheet results describe the pristine web. Laminated or converted-pack results show the barrier that remains after processing stress.
Reporting style: An average lab value is not the same as a guaranteed maximum specification or a realistic production range.
Barrier sourcing frequently fails at the unit stage. Teams mix cc/100 in2/24 hr with cc/m2/day, or g/100 in2/24 hr with g/m2/day, then compare them as if they were the same. That creates false equivalence between suppliers and can lead to the wrong laminate.
A disciplined supplier report should include all of the following:
One consistent unit system
Test method and full test conditions
Film thickness and optical density
Flat-sheet data and post-conversion data, when available
Guaranteed maximum or realistic production range
Metal bond data from the same lot
| Barrier metric | Typical method | Common condition | Why it matters | Frequent sourcing mistake |
OTR | ASTM D3985 | 23°C, 0% RH | Shows oxygen protection of the film or laminate | Comparing values taken at different humidity levels |
WVTR | ASTM F1249 | 37.8°C, 90% RH | Shows moisture protection under severe conditions | Ignoring that humidity drives major changes in result |
Gas transmission for CO2 or N2 | ASTM D1434 | Application-specific | Important for coffee, MAP, and aroma retention | Assuming oxygen data predicts all gas behavior |
Flex durability | ASTM F392 | Gelbo flex cycles | Shows retained barrier after twisting and crushing | Approving a film only on flat-sheet barrier |
The aluminum layer on metallized PET is thin enough that mechanical stress can fracture it. Printing, slitting, lamination, pouch forming, sealing, folding, and distribution all add stress. When that stress exceeds the structure’s tolerance, the metal develops micro-cracks or crazing. Oxygen and moisture then move through those defects much more easily than they do through an intact layer.
In commercial structures, OTR may increase threefold to tenfold after flexing, repeated folding, or vibration. The best flat-sheet barrier therefore does not always deliver the best shelf life. A film with slightly higher initial transmission but stronger metal bond and better crack resistance may outperform a higher-OD competitor after conversion.
Sharp folds, aggressive gussets, and tight pouch corners
High-tension lamination or poorly controlled web handling
Cold-to-hot temperature cycling during storage or transport
Brittle metallization with weak adhesion to the PET base
Packages exposed to repeated handling, compression, or e-commerce shipment
These risks are not theoretical. They often explain why a lab-approved film fails only after a commercial pilot or a market shipment.
Barrier should be qualified at the laminate and pack level, not only at the film level. The most useful post-lamination checks include:
ASTM F392: Gelbo flex resistance and barrier retention
ASTM F88: Seal strength
ASTM F2054: Burst testing for pack integrity
ASTM F1929: Dye penetration for micro-channel leak detection
Metal bond testing: Confirmation that the aluminum layer does not dust, flake, or delaminate
A realistic qualification sequence usually follows this order:
Review TDS, OD range, and metal bond data.
Build the intended laminate with the actual adhesive and sealant.
Run flex, seal, burst, and leak tests on converted samples.
Measure retained barrier after processing and simulated distribution.
Approve the structure only after shelf-life modeling matches retained performance.
Foil remains the reference material when near-zero transmission and full opacity are essential. It is the safer choice for extreme oxygen-sensitive products or very long shelf-life targets. Metallized PET is often preferred when the required barrier is high but not absolute. It can reduce package weight, lower cost, improve machineability, and resist flex-related failure better than very thin foil laminates in many applications.
PVDC-coated PET can offer transparency and specific sealing advantages in some constructions, but metallized PET generally delivers stronger light protection and lower oxygen and moisture transmission at similar gauges. End-of-life concerns around chlorine chemistry also push many brands away from PVDC in markets with stronger EPR or sustainability pressure.
EVOH is an excellent oxygen barrier in dry conditions. In humid environments, its oxygen barrier drops unless it is protected between strong moisture-resistant layers. For refrigerated, humid-fill, or condensation-prone packaging, metallized PET can provide a more stable total-barrier profile across oxygen, moisture, aroma, and light.
Transparent oxide-coated films are preferred when the pack must remain clear, work with metal detectors, or tolerate microwave use. Metallized PET is often lower cost and provides stronger inherent light blocking. Oxide coatings can also be brittle and demand careful tension control and topcoat protection during lamination.
Metallized PET generally offers better oxygen barrier, higher stiffness, stronger dimensional stability, and better heat resistance. Metallized OPP often offers better inherent moisture barrier and better flex-crack resistance in certain structures. The correct choice depends on whether the product is driven mainly by oxygen, moisture, heat, or handling stress.
| Material | Oxygen barrier | Moisture barrier | Light barrier | Main strength | Main limitation |
Metallized PET | High | High | Excellent | Balanced barrier and cost | Barrier can drop after flexing if the structure is weak |
Aluminum foil | Very high | Very high | Excellent | Near-absolute barrier | Higher cost and potential flex/pinhole issues in thin gauges |
PVDC-coated PET | Moderate to high | Moderate | Limited | Transparency in some constructions | Regulatory and end-of-life concerns |
EVOH laminate | Very high in dry conditions | Structure dependent | Limited | Outstanding dry oxygen barrier | Humidity sensitivity |
ALOx/SiOx PET | High | High | Low to moderate | Transparency and microwave compatibility | Higher handling sensitivity |
MetOPP | Moderate to high | Very high | Excellent | Strong moisture barrier and flex performance | Lower heat resistance and lower oxygen barrier than MetPET |
Metallized PET is rarely the only layer that matters. Finished pack performance depends on the full construction:
Outer web: PET or nylon for printability, stiffness, abrasion resistance, and puncture resistance
Barrier web: metallized PET for oxygen, moisture, aroma, and light control
Adhesive or tie layer: chemical resistance, bond strength, and thermal-process stability
Sealant layer: PE, CPP, or specialty PP for hermetic sealing and line-speed performance
If the sealant channels, the adhesive softens, or the outer web cracks, the barrier layer alone cannot protect shelf life.
A BOPP metallized PET film laminate is common in snacks, bakery, confectionery, dry mixes, powdered beverages, and selected pet treats. The design logic is straightforward: BOPP contributes good moisture resistance and efficient flow-wrap behavior, while metallized PET adds stronger oxygen barrier, stiffness, and light shielding than a simple metallized OPP-only concept.
Success still depends on structure details. Layer order, adhesive chemistry, sealing temperature, and pack geometry determine whether the laminate performs well on a high-speed line.
Sealant selection has a direct effect on leak rate, machine speed, and thermal stability:
PE sealants: broad sealing window and reliable hermetic seals in many food applications
CPP sealants: good puncture resistance and stronger heat tolerance
Low-SIT PP sealants: useful for high-speed HFFS lines where hot tack and seal initiation temperature control uptime
A weak seal system can erase the value of an excellent barrier web. In practice, many shelf-life complaints originate at the seal area rather than through the flat film itself.
Reverse printing is often preferred because it protects the graphics and reduces direct abrasion on the metallized surface. Suppliers should also confirm corona treatment, primer systems, and ink or adhesive compatibility for the intended chemistry and line speed. Metal bond strength is a critical supplier screen. Weak bond can lead to metal transfer, dusting, flaking, or lamination defects that sharply reduce retained barrier.
High barrier metallized PET film is typically specified for sensitive powders, coffee, high-fat foods, aroma-critical products, and formulations with aggressive oxidative failure modes. For these applications, buyers should request:
Target OD and control range
Flat-sheet OTR and WVTR
Post-Gelbo retained barrier
Metal bond data
Recommended laminate partners and converting conditions
Heat resistant metallized PET film is relevant for hot-fill, pasteurization, boil-in-bag adjacent formats, and selected retort laminates. The base film alone is never enough for approval. The full laminate must retain bond integrity, seal integrity, and acceptable barrier after exposure to the actual thermal cycle, whether that means 95°C water exposure or 121°C for 30 minutes in a retort environment.
Matte grades support premium shelf presentation without adding a separate matte varnish or paper-like overlayer. The technical review should still cover OD uniformity, abrasion resistance, print anchorage, scuff performance, and post-conversion barrier. Matte appearance is a branding feature, not a substitute for qualification data.
In coffee, oxygen barrier protects roast character while the structure also has to manage CO2 release when a degassing valve is present. In snacks and bakery, moisture barrier is often the shelf-life driver because texture loss occurs before oxidation becomes obvious. In proteins, fatty foods, and pet treats, oxygen and light together accelerate rancidity and odor drift. These categories benefit from metallized PET when the laminate retains barrier after handling.
Stick packs and sachets expose very small seal footprints to strict moisture and light requirements. Hygroscopic powders can fail quickly if channel leaks form or if the barrier drops after flexing. Sensitive actives also need strong opacity control when light degradation is part of the stability profile.
Many formulations attack the adhesive or sealant before they affect the PET itself. Essential oils, acids, solvents, and active creams can soften weak lamination systems and create delamination, odor loss, or seal failure. Chemical resistance must therefore be qualified at the full-laminate level.
When full opacity is desirable, metallized PET provides both light shielding and odor retention. Teams in regulated categories should also confirm inspection compatibility, secondary child-resistance requirements where relevant, and whether metal detection or X-ray will be used on line.
Film selection should begin with the failure mode of the packed product, not with a generic favorite structure. A disciplined review covers:
Product state: dry, oily, acidic, solvent-containing, hygroscopic, frozen, or hot-filled
Main spoilage driver: oxygen, moisture, UV/light, aroma loss, or chemical attack
Target shelf life: local distribution, export storage, or long-term reserve stock
Distribution environment: ambient, refrigerated, humid, parcel-shipped, or hot climate
The following logic is common in qualification work:
If oxygen and light control dominate, shortlist premium metallized PET structures.
If downgauging and roll efficiency matter, compare retained barrier and stiffness before approving 12 micron metallized PET film.
If premium shelf appearance matters, evaluate matte grades without relaxing OD or metal bond requirements.
If the process includes thermal load, qualify a heat-resistant laminate, not only a heat-resistant base film.
If the application is mainly moisture-driven and severe flex is expected, compare MetPET against MetOPP or BOPP-heavy laminates before final selection.
Is the published data flat-sheet, laminated, or converted-pack?
Which ASTM or ISO method and conditions were used?
What OD range and metal bond values were recorded on the production lot?
What adhesive and sealant were used to generate the published results?
Is post-Gelbo barrier retention available?
Is the structure suitable for X-ray, metal detection, hot fill, or retort, if required?
Package economics are rarely determined by resin price alone. Procurement teams should compare cost per finished pack by including roll length, number of changeovers, freight density, pallet count, waste generation, machine uptime, spoilage risk, and returns. A slightly higher film price can still win if it reduces unplanned stops and shelf-life losses.
Downgauging can be attractive because it increases linear meters per roll, cuts freight weight, and reduces changeover frequency. Those benefits are real only when the thinner structure still meets tensile, curl, stiffness, and retained-barrier targets. In abrasive logistics, heavy-fill packs, or geometries already near minimum burst strength, automatic downgauging can increase total cost instead of reducing it.
Metallized PET remains a practical high-barrier solution, but mixed-material laminates can face recycling limits that vary by region. Brand pressure toward mono-material PE or PP structures continues, yet those options often require barrier compromise or more complex coating systems. Claims should stay realistic: high barrier, transparency, microwave compatibility, broad recycling access, and low cost seldom coexist in one commercial structure.
Product details: dry, wet, oily, acidic, powder, volatile, light-sensitive, or oxygen-sensitive
Shelf-life target and storage conditions: ambient, refrigerated, frozen, humid export, hot-fill, pasteurized, or retort
Barrier targets: OTR, WVTR, opacity or light barrier, aroma retention, and any CO2 retention need
Film specification: thickness, OD range, gloss or matte appearance, and whether 12 µm is acceptable
Laminate structure: outer web, barrier web position, adhesive chemistry, and sealant type
Converting and filling conditions: line speed, sealing window, hot tack, pouch geometry, and e-commerce handling risk
Inspection constraints: X-ray versus metal detector and any microwave restriction
Compliance requirements: food contact, pharma documentation, EPR reporting, and PCR disclosure if required
Metallized PET remains one of the most commercially balanced barrier materials when a pack needs strong oxygen, moisture, and light resistance without the cost and rigidity of foil. The decisive sourcing principle is straightforward: flat-sheet barrier is only the starting point. Converted-pack performance, OD consistency, metal bond, seal integrity, and retained barrier after flexing determine real shelf life.
Collect lot-specific TDS data with ASTM methods, conditions, OD, and metal bond values.
Build the intended laminate and test retained barrier after flexing, sealing, and thermal exposure.
Verify seal strength, burst integrity, and leak resistance on converted packs.
Approve the film only after shelf-life modeling matches post-conversion performance.
A: Strong grades usually show very low flat-sheet OTR and WVTR compared with plain PET, but the exact result depends on thickness, OD, test method, temperature, humidity, and whether the sample is flat, laminated, or converted.
A: The aluminum layer is extremely thin. Printing, lamination, folding, sealing, and shipping can create micro-cracks or weak spots that raise oxygen and moisture transmission far above the flat-sheet value.
A: Often yes, especially in optimized laminates, but approval should depend on retained barrier, metal bond, tensile behavior, seal performance, and distribution stress, not on thickness alone.
A: It combines OPP’s moisture resistance and high-speed converting behavior with MetPET’s stronger oxygen and light barrier. Final performance still depends on layer order, adhesive, and sealant selection.
A: They generally do not suit either requirement. The aluminum layer can trigger metal detectors and can arc in microwaves. Transparent oxide-coated alternatives are usually considered for those cases.
A: It should be specified when the final laminate must survive hot-fill, pasteurization, or selected retort conditions while retaining bond strength, seal integrity, and acceptable post-process barrier.
