Packaging engineers and industrial converters constantly face the trade-off between achieving high barrier properties and maintaining structural integrity under high-speed line stresses. Delamination, poor hot tack, and the inability to recycle multi-material composites drive severe compliance failures and compromised shelf life. While traditional aluminum foil, paper structures, or PVDC coatings offer excellent barriers, they increase packaging weight and present immediate odor-absorption risks. They block downstream recyclability and steadily drive up logistics costs across the entire supply chain. Finding a lightweight alternative that withstands extrusion heat shock and high-speed vertical form-fill-seal (VFFS) stresses remains a persistent technical hurdle.

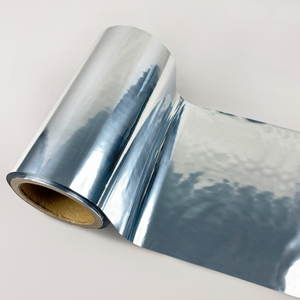

Metallized CPP film offers a scalable resolution to these exact operational challenges. The global market for these advanced barrier films will reach a valuation of $2.8 billion in 2025. Market projections indicate consistent growth reaching $4.2 billion by 2034, registering a 5.2% CAGR. The APAC region heavily drives this industrial expansion, holding a 42.1% market share. Packaging professionals must understand specific micro-layer architecture, variable optical density metrics, and precise lamination formulas. Mastering these physical specifications directly optimizes Total Cost of Ownership (TCO) and ensures facilities meet stringent mono-material sustainability targets.
Barrier Multiplier: Vacuum deposition of a 30–50 nanometer aluminum layer improves oxygen transmission rates (OTR) by 100x–500x and moisture resistance (MVTR) by 50x–200x compared to untreated substrates, making it ideal for Modified Atmosphere Packaging (MAP).
High-Speed Machine Compatibility: Engineered as a metalized CPP heat seal film, it delivers exceptionally low seal initiation temperatures (SIT) and broad hot tack, supporting continuous packaging speeds of 800–1000 packs per minute.
Mono-Material Transition: Upgrading from VMPET to high-bonding VMCPP enables 100% recyclable Polypropylene (Mono-PP) laminations, directly addressing stringent global extended producer responsibility (EPR) mandates.
Handling & Compliance Imperatives: Factory-level performance requires strict environmental controls (<30°C, <60% RH) and pre-lamination bump treatments to prevent metal cracking. For FDA/EU food contact compliance, the metal layer must remain embedded within the composite structure.
Top-tier manufacturing relies on advanced cast extrusion equipment, heavily utilizing Windmöller & Hölscher (W&H) lines, to produce a highly engineered three-layer co-extrusion structure. Engineers set extruder barrel temperatures between 240°C and 260°C to achieve optimal melt flow capability. The molten polymer exits the flat die and drops onto a massive chill roll maintained at 15°C to 20°C. This rapid quenching halts polymer crystallization, resulting in a flexible substrate with exceptional clarity and mechanical stability. Each microscopic layer serves a distinct mechanical and thermal function.
The h-PP layer acts as the inner heat sealable and hot-slip surface. This completely untreated side provides the core heat seal functionality necessary for secure package closures. Engineers formulate this layer with specific low-melting-point copolymers. Its modified seal initiation temperature allows the material to self-heal during jaw sealing without fracturing. The t-PP layer functions as the structural core framework. Facilities load this center matrix with precise, non-migratory additives, including synthetic silica as an anti-block agent and erucamide for slip control. These compounds ensure stable slip properties, impart a low-noise tactile softness, and deliver high puncture resistance without interfering with outer layer adhesion.
The c-PP layer represents the high-adhesiveness metallized side. Operators subject this specialized exterior to primary corona or flame treatment immediately after the quenching phase. This aggressive high-voltage surface treatment generates highly specific polar functional groups on the polymer chain. These activated groups receive the metallic vapor and function as a high-bonding tie-layer. This robust anchor point permanently prevents future metal delamination under heavy mechanical stress.
Layer Designation | Volume Percentage | Primary Additives | Engineering Function |
h-PP (Inner Layer) | 20% - 25% | Low-temp Copolymers, Slip Agents | Low SIT heat sealing, broad hot tack, low friction product filling. |
t-PP (Core Layer) | 50% - 60% | Homopolymer PP, Anti-block Agents | Structural rigidity, puncture resistance, acoustic dampening. |
c-PP (Outer Layer) | 20% - 25% | Specialty Tie-Resins | High dyne retention, aluminum vapor adhesion, delamination resistance. |
Producing a flawless barrier requires absolute environmental isolation within the metallization chamber. Technicians draw the internal vacuum down to extreme parameters, typically ranging from 10⁻⁵ to 10⁻⁶ torr. This intense vacuum environment guarantees pure, defect-free metal deposition by entirely eliminating oxygen molecules and airborne contaminants that cause metal pitting. Deep cryogenic panels operate within the chamber to freeze out any residual water vapor radiating from the polymer web.
During the active vapor deposition phase, automated wire feeders push 99.99% pure aluminum wire into evaporator boats heated to 1,500°C. The solid aluminum vaporizes instantly. This dense metallic vapor travels upward through the vacuum and condenses onto the chilled polymer web moving rapidly over a processing drum. The internally chilled drum prevents the base CPP film from melting or distorting under the extreme localized heat of the metal vapor.
Process engineers maintain precise angstrom-level control throughout the entire production run. They achieve a uniform metallic shield measuring only 300–500 Å, which equals 30–50 nanometers in actual thickness. In-line Optical Density (OD) sensors continuously read the web opacity. These calibrated sensors guarantee strict barrier consistency across the entire roll profile, instantly flagging any transverse zones where aluminum deposition falls below the targeted 2.0 to 2.5 OD specification.
Suppliers classify barrier films into distinct optical categories based on final aluminum thickness and specific polymer formulation additives. Packaging engineers must match the material grade perfectly to the product payload to prevent over-engineering costs while avoiding premature spoilage.
Transparent grades utilize ultra-thin 15-25nm aluminum deposition to achieve a final haze rating below 2%. These variants provide excellent product visibility while still significantly impeding gas transfer. Opaque variants rely on carbon black or titanium dioxide (TiO2) masterbatch additives to engineer 100% light-blocking capabilities. The dense metal layer effectively eliminates gas permeability. This exact structure excels at Modified Atmosphere Packaging (MAP). It physically seals in flushed nitrogen to halt fat oxidation in perishable snack foods completely.
Classification | Target Optical Density (OD) | Barrier Performance (OTR/MVTR) | Primary Industrial Use Cases |
Transparent VMCPP | 0.8 - 1.2 | MVTR: 0.5-1.5 gm/m²/day | High-visibility snack packaging; baked goods; 12-18 month shelf life targets. |
Standard Opaque VMCPP | 2.0 - 2.5 | OTR: < 1.0 cc/m²/day | Potato chips; dry powders; nitrogen-flushed pillow pouches. |
High-Barrier Opaque VMCPP | 2.8 - 3.2 | OTR: < 0.1 cc/m²/day | Pharmaceuticals; wet pet food; extended 3-7 year shelf life targets. |
The operational efficiency of a packaging line relies heavily on exact thermal dynamics. Deploying a high-quality metalized CPP heat seal film introduces a remarkably low Seal Initiation Temperature (SIT). Modern grades achieve reliable hermetic seals at 95°C, compared to older iterations requiring 110°C. A lower SIT directly expands the thermal processing window. You can increase machine speeds and reduce the dwell time the sealing jaws spend closed against the film.
Broad hot tack strength remains mandatory for vertical form-fill-seal (VFFS) systems. Hot tack represents the physical ability of a fresh seal to hold heavy bulk products while the inner polymer layers remain in a molten state. Operators measure this force in Newtons per 25mm (N/25mm). Without superior hot tack, the physical shock of dropping 500 grams of product down the forming tube will rupture the bottom seal instantly.
Acoustics and aesthetics play a massive role in modern consumer perception. This polymer matrix provides a low-noise, soft-touch consumer experience compared to the crinkly, highly rigid nature of VMPET structures. Brands utilize this distinct acoustic advantage alongside visual differentiation. Procurement teams can select between traditional glossy exterior finishes and premium matte metallic surfaces to enhance shelf appeal.
Engineers must carefully calibrate the Coefficient of Friction (COF) to maintain high line speeds. Quality control teams measure both static and kinetic COF. If the kinetic COF runs above 0.35, the film drags against the metal forming collars, causing machine jamming and severe web stretching. If the static COF drops below 0.15, pallet stacking becomes unstable, leading to warehouse load slippage. Manufacturers balance these opposing forces using precise combinations of migrating slip agents and non-migrating anti-block particles within the core polymer matrix.
Bonding strength measurement dictates long-term structural survival. Laboratory teams use dyne pens to evaluate surface energy immediately after corona treatment, targeting an initial surface tension above 42 dynes/cm. They measure subsequent lamination peel strength using Newtons per 15mm (N/15mm). Consistent peel strengths above 1.5 N/15mm ensure the metal layer permanently adheres to the CPP substrate. This prevents catastrophic composite structural failure and delamination during international transit.
Industrial converters deploy highly specific multi-layer formulas to balance overall rigidity, flexographic printability, and gas barrier requirements. The most prevalent standard formula for dry, puffed snacks pairs a 20-micron BOPP web with a 25-micron VMCPP web. In this structure, the outer BOPP provides exterior gloss, excellent reverse printability, and dimensional stiffness. The internal CPP metallized lamination film acts as the critical moisture barrier and the primary heat sealant layer.
For heavier granulated goods and large stand-up pouches (SUP), converters specify a PET / VMCPP formula. Polyethylene terephthalate (PET) delivers superior tensile strength and excellent exterior heat resistance. This prevents the outer web from melting or sticking to the heated sealing jaws. The internal CPP layer manages the heavy physical load of dense dry goods securely without stretching.
Packaging engineers specify PA (Nylon) / VMCPP combinations for high-abuse vacuum applications. Severe puncture-risk environments, such as bone-in meats, frozen seafood, or sharp hardware packaging, demand nylon's intense structural resilience. The metallized inner layer provides the necessary gas barrier to maintain vacuum integrity over extended cold-chain distribution cycles.
Extrusion lamination introduces severe thermal stress to flexible packaging webs. During this process, operators drop a curtain of molten polyethylene at 300°C+ directly onto the metallized surface to bond two webs together. Traditional metallized films risk immediate micro-cracking in the aluminum layer when exposed to this intense heat. This heat shock challenge leads to catastrophic barrier loss. The damage remains completely invisible to the naked eye but drastically accelerates product spoilage.
Modern converting resolves these specific thermal failures through specialized adhesive and primer solutions. Converters specify the use of two-component solventless polyurethane (PU) adhesives applied at precise coat weights of 1.5 to 2.5 g/m². They pair these adhesives with high-bonding primer tie-layers. This engineered chemical interface absorbs the thermal shock and flexes under physical strain. It maintains the pristine structural integrity of the nanometer-thick metal shield throughout the curing process.
The global biscuit and cracker industry relies heavily on ultimate MVTR performance to prevent moisture ingress and maintain long-term product crispness. Because baked goods generate hard crumbs and surface oil, the packaging film requires superior bond strength and chemical resistance. The finalized pouch must survive intense transport vibrations and pallet pressure without bursting at the seams or delaminating at the flexible corner points.
Confectionery manufacturing utilizes dedicated twist-grade variants, heavily featuring the HST-1 TW specification. This specific material modification emphasizes high dead-fold retention and directional stiffness. Quality testing requires the film to hold a 270-degree mechanical twist without springing back. It delivers exceptional twistability for high-speed candy processing machines, ensuring the twist wraps remain tightly locked without unwinding during distribution to retail shelves.
Surgical instruments and wet pet foods require rigorous terminal sterilization protocols. Packaging engineers specify retort grade metallized CPP film to withstand intense autoclave environments. These specialized polymer grades survive sustained exposure to 121°C steam for 45 minutes under 2.5 bar pressure. The engineered tie-layers prevent the metal from cracking, and the high-temperature sealant ensures the internal seams do not fail under pressure differentials.
Pharmaceutical manufacturers actively replace heavy, non-recyclable alu-alu cold-formed foils with high-barrier opaque VMCPP structures. This lightweight alternative provides absolute light blocking and extreme moisture protection. It successfully safeguards humidity-sensitive blister packs and effervescent tablets, guaranteeing active pharmaceutical ingredient (API) efficacy throughout extended, uncontrolled supply chains.
Beyond perishable consumer goods, industrial sectors leverage the highly conductive nature of the aluminum layer for Electrostatic Discharge (ESD) shielding. Microelectronics, printed circuit boards (PCBs), and sensitive semiconductors require strict protection from static shock, ambient moisture, and UV light degradation. Metallized flexible packaging delivers this comprehensive environmental isolation. Engineers specify films with surface resistivity measurements strictly contained between 10⁴ and 10¹¹ ohms per square. This provides a guaranteed Faraday cage effect at a fraction of the cost and weight of rigid static-control containers.
Global environmental regulations strictly penalize the generation of mixed-plastic waste. The current recyclability bottleneck centers heavily on traditional Metallized PET (VMPET). When converters laminate VMPET to PE or PP sealant webs, modern Material Recovery Facilities (MRFs) automatically reject the entire structure. Near Infrared (NIR) optical sorters cannot categorize the conflicting polymer signatures. Mechanical separation of these fundamentally incompatible polymers remains economically unviable, sending thousands of tons to landfills.
Pairing a BOPP print web directly with a VMCPP barrier web resolves this sorting issue by creating a homogenous, 100% recyclable structure. This exact Mono-PP advantage complies directly with CEFLEX guidelines requiring structures to contain >90% polypropylene. Leading consumer brands now integrate 25% to 50% food-grade recycled PP (rPP) into these laminations. This aggressive, future-proof strategy significantly lowers regulatory compliance costs and completely avoids punitive plastic packaging taxes levied by the European Union and emerging regional jurisdictions.
Advanced nanoscale deposition technology drastically improves overall packaging economics. By reducing the required aluminum layer thickness down to 10-15 nanometers using enhanced tie-layers, manufacturers cut raw plastic consumption by 15% to 25% while maintaining strict OTR and MVTR requirements. This physical material reduction directly influences the manufacturer's bottom line and lowers the required extruder energy consumption.
Replacing rigid paper structures and heavy foil laminates with highly flexible VMCPP yields massive logistics ROI. It drastically reduces inbound master roll shipping weight and eliminates paper-based odor absorption issues entirely. Brands directly cut Scope 3 carbon emissions and reduce outbound freight costs due to higher pallet densities. The packaging industry continues developing metallized bio-based PLA films. These emerging material synergies provide a direct, adjacent strategy for forward-thinking brands requiring fully compostable high-barrier packaging solutions.
Preserving precise surface energy requires strict factory-level environmental controls. Procurement teams must mandate warehouse storage temperatures strictly below 30°C (86°F) and maintain relative humidity levels under 60%. These narrow climate tolerances prevent microscopic metal oxidation and eliminate severe film blocking issues caused by the migration of slip additives at high temperatures. Unused master rolls must remain tightly wrapped in their original metallic moisture-barrier film until immediately before loading onto the laminator.
During the conversion process, operators must execute pre-lamination bump treating. Natural surface tension decay drops a film's energy from 42 dynes down to 38 dynes over three months of storage. A secondary, light corona bump treatment on the converting line instantly revitalizes the film's surface energy. It activates the dormant polar groups immediately prior to solventless adhesive application, guaranteeing maximum destructive bond strength.
For regulatory compliance, manufacturers must embed the metal layer correctly during lamination. FDA 21 CFR 177.1520 and EU 10/2011 food contact mandates strictly require laminating the metallized side inward, buried between the polymer layers. This architectural rule completely isolates the aluminum vapor deposition from any direct physical contact with acidic foods or highly regulated pharmaceutical payloads, preventing any risk of heavy metal migration.
Define the Payload: Clearly specify whether the contents are dry, oily, or wet. Identify any sharp physical edges, powder particulates, or MAP nitrogen-flush requirements that dictate necessary puncture resistance and barrier strength.
Determine Machine Compatibility: Confirm exact operational line speeds (e.g., 800-1000 ppm) and identify the specific packaging format (VFFS vs. HFFS). This determines necessary kinetic COF limits, acoustic softness requirements, and SIT boundaries.
Specify Gauge and Thickness: Detail the exact base film thickness required to support the payload volume. Thickness typically ranges from lightweight 18μm films up to 100μm+ structures depending on the necessary web rigidity and vertical structural load.
Design the Lamination Architecture: Explicitly define the exterior web material (e.g., BOPP, PET, or PA). Match this directly to the appropriate metallized lamination film grade to guarantee optimal bonding strength consistently testing above 1.5 N/15mm.
Detail Roll Specs and Additives: Provide the exact web width, internal core ID (typically 3 or 6 inches), and maximum outer diameter (OD) targets. Specify the desired aesthetic finish and state the necessity of specialized non-migratory anti-static or anti-fog agents.
Transitioning from outdated multi-material laminates to advanced mono-material structures requires systematic implementation. You must execute the following actions to secure barrier integrity and maintain production line efficiency:
Audit Existing Composites: Catalog all active SKUs currently utilizing VMPET, heavy aluminum foil, or PVDC coatings to identify immediate replacement candidates.
Request Baseline Samples: Source sample rolls of high-bonding VMCPP from suppliers providing verified, documented Optical Density (OD) consistency logs.
Validate Surface Energy: Establish an in-house testing protocol using dyne pens to confirm surface tension remains firmly above 38 dynes/cm prior to lamination.
Conduct Pilot Runs: Schedule trial lamination runs utilizing solventless elastic curing adhesives to evaluate the metal layer's specific resistance to extrusion heat shock.
Recalibrate Machine Parameters: Adjust vertical form-fill-seal (VFFS) sealing jaw temperatures and pull belt speeds to align with the distinctly lower seal initiation temperature (SIT) of the new flexible film.
A: VMPET (Metallized PET) offers higher rigidity and temperature resistance but cannot be recycled when laminated to polyolefins. Metallized CPP offers superior tear resistance, lower noise, lower heat seal temperatures, and allows for 100% recyclable Mono-PP laminations when paired with BOPP.
A: The aluminum deposition is microscopic, typically measuring between 30 to 50 nanometers (300–500 Angstroms). Advanced high-barrier grades are pushing this down to 10-15 nanometers to reduce material weight further without sacrificing OTR/MVTR.
A: It is a specially formulated CPP film with advanced temperature resistance designed to survive the high heat and extreme pressure of autoclave sterilization (typically 120°C to 135°C) without the metal layer cracking or the internal seal failing. It is heavily utilized in medical sterility packaging and wet pet food.
A: Delamination usually occurs due to poor initial surface treatment (low Dyne level), the use of rigid adhesives that crack under stress, or "heat shock" during extrusion lamination that causes micro-fractures in the metal layer. High-bonding primer layers and elastic curing adhesives resolve this.
A: Yes, specialized grades are engineered with low Seal Initiation Temperatures (SIT) and broad hot tack windows, allowing them to form secure, instantaneous seals at packaging speeds exceeding 800 to 1000 packs per minute, making them ideal for nitrogen-flushed snack lines.
A: Rolls must be stored at temperatures below 30°C (86°F) and under 60% relative humidity. They should be kept in their original moisture-barrier wrapping until right before conversion to prevent blocking and loss of surface energy.
