Ultra-thin packaging only works when lightweighting does not destroy shelf life. That is the central engineering problem. Foil gives near-absolute barrier, but it pinholes, flex cracks, blocks visibility, adds weight, and complicates recycling programs. PVDC still performs well, yet chlorine-related scrutiny and internal restricted-substance policies often limit its appeal. EVOH is effective, but oxygen barrier can fall sharply under high humidity unless the structure protects it carefully. For many transparent, microwave-compatible packs, Metalized ALOx Films offer a practical middle path.
The material is not a universal replacement. Real performance depends on deposition quality, substrate choice, topcoat design, lamination method, and web handling discipline. Buyers therefore need more than a brochure OTR figure. They need barrier data under the right test conditions, post-conversion durability, substrate-specific limits, and application-matched laminate structures. The sections below provide that decision framework for packaging engineers, R&D teams, and procurement managers evaluating transparent high-barrier film for ultra-thin packaging.
Extreme Barrier at Nanoscale: Commercial AlOx coated film for packaging can achieve OTR below 0.1–0.3 cc/m²/day and WVTR around 0.2–0.25 g/m²/day in ultra-high-barrier grades, while remaining transparent.
Performance Depends on Structure, Not Marketing Claims: Barrier data must be evaluated alongside substrate, topcoat, adhesive route, test method, and whether results are measured pre- or post-lamination, retort, or flexing.
Humidity Stability Is a Major Differentiator: Unlike many EVOH-based structures, properly engineered ALOx barriers remain far more stable in high-RH and elevated-temperature conditions.
Converting Discipline Is Non-Negotiable: The biggest hidden failure point is downstream processing—especially coating adhesive directly onto the ALOx side, poor dyne control, and excessive web strain during lamination or FFS.
Transparency Unlocks New Use Cases: Key AlOx coated film benefits include microwave compatibility, metal-detector friendliness, product visibility, premium shelf appearance, and easier tablet or product inspection.
Best Fit Requires Application Matching: Coffee, snacks, meats, retort foods, pharmaceutical blisters, and electronic moisture barriers do not require the same laminate architecture or barrier grade.
ALOx is a nanometer-scale aluminum oxide, or Al2O3, ceramic layer deposited onto a polymer web. It is not a metallic aluminum layer. That difference matters because the finished film stays transparent and remains compatible with microwave heating and optical inspection. Commercial supply is usually built on BOPET or BOPP. PET remains the default base for dimensional stability, stiffness, and optical clarity. BOPP supports lightweight structures and recycling-oriented all-PP concepts. High-clarity grades can maintain light transmission near 87%, which is why the film often appears glass-like on shelf.
Commercial ALOx film is usually produced by vacuum deposition. In that chamber, evaporated aluminum reacts with oxygen and forms a thin ceramic barrier on the film surface. The coating is extremely thin, but it changes barrier behavior significantly. The barrier web itself is usually non-sealable, so converters pair it with a sealant layer such as PE, CPP, or a coextruded sealant web. In practice, performance comes from the full laminate, not from the coated web alone.
Deposition route affects crack resistance and barrier retention. Reactive evaporation can produce columnar growth with more defect sensitivity. Plasma-assisted deposition tends to create a denser, more amorphous structure with fewer grain-boundary pathways. In published performance comparisons, denser coatings show roughly 20% higher density, elastic modulus near 95.12 GPa, and fracture energy around 24.38 J/m2. Those values are not just lab curiosities. They translate into better survival during lamination, pouch making, and filling line strain.
The ceramic barrier is thin and mechanically vulnerable. Many commercial grades therefore add a printable protective topcoat over the ALOx side and a primer or slip layer on the reverse. Those layers do four jobs:
They reduce scuffing during rewinding and transport.
They improve ink anchorage and adhesive wet-out.
They stabilize slip and web transport on converting lines.
They can help fill micro-defects that hurt moisture barrier.
When buyers compare products, they should ask whether reported barrier values come from bare ALOx film or from a top-coated commercial grade. The answer often explains large differences in WVTR performance.
Barrier labels vary by supplier, so buyers need a working classification. High-barrier grades may report OTR below 15.5 cc/m2/day. Commercial ultra-high-barrier grades can move near 0.1 to 0.3 cc/m2/day with WVTR around 0.2 to 0.25 g/m2/day. Retort-oriented grades are designed to retain performance after 121°C for 30 minutes. PET-based ALOx webs commonly fall in the 9.5 to 23.5 μm range. BOPP high-barrier grades often sit around 18 to 20 μm for better converting stability.
Headline barrier claims are incomplete without test context. A purchasing team should verify at least five points before shortlisting a film:
Confirm the OTR method, such as ASTM D3985 or an equivalent.
Confirm the WVTR method, such as ASTM F1249 or an equivalent.
Check temperature and humidity, especially 23°C dry versus 38°C and 90% RH.
Identify whether data is pre-lamination, post-lamination, post-flex, or post-retort.
Ask whether results come from the plain web or the final commercial laminate.
Those details often matter more than the number itself. A film that looks excellent on a dry flat-web test can fail once it is laminated, creased, heated, and shipped.
One reason buyers study AlOx coated film advantages is humidity stability. EVOH-based oxygen barrier can weaken in wet conditions unless shielded by polyolefin layers. Properly engineered ALOx barriers are less sensitive to that humidity swing. That makes them attractive for chilled foods, high-moisture fillings, and export distribution where climate conditions vary. Practical checkpoints still matter. Some structures are intended for boil or pasteurization near 95°C for 30 minutes. Others are designed to hold barrier after 121°C retort. Microwave suitability should also be confirmed on the final package, not assumed from the barrier web alone.
ALOx should be benchmarked against the materials it often replaces. The table below focuses on real packaging tradeoffs rather than theoretical barrier alone.
| Material | Typical Strength | Main Weakness | Transparency | Microwave Compatibility | Comments for Buyers |
ALOx-coated film | High oxygen and moisture barrier with transparency | Barrier can drop if converting is poorly controlled | Yes | Generally yes | Best when topcoat, substrate, and lamination route are proven. |
Aluminum foil | Near-absolute barrier and full light block | Pinholing, flex cracks, added weight, poor visibility | No | No | Still useful for light-sensitive or legacy structures. |
PVDC | Strong barrier on thin coatings | Chlorine-related compliance and ESG concerns | Yes | Yes | Performance remains good, but internal policy limits are common. |
EVOH | Excellent oxygen barrier in dry conditions | Humidity sensitivity | Yes | Yes | Often works well when protected in coextruded structures. |
VMPET | Strong barrier with metallic appearance | Opaque, not inspection-friendly, less microwave-friendly | No | No | Useful when appearance and cost fit, but visibility is lost. |
ALOx is not always the best answer. If the product needs full light blocking, foil or an opaque metallized structure may still be the safer choice unless the printed design supplies sufficient light protection.
The same barrier grade should not be applied across every SKU. Coffee, nuts, and chips fail first from oxygen ingress and aroma loss. Fresh meat and cheese often require dual oxygen and moisture protection, plus vacuum or MAP compatibility. Pharmaceutical and diagnostic packs focus on long-term moisture control, dosage stability, and inspection visibility. Electronics shift the target again toward moisture ingress, corrosion risk, dielectric reliability, and anti-static packaging behavior. That is why barrier selection should start with failure mode mapping instead of generic material preference.
Ultra-high barrier is expensive when the product does not need it. The most effective procurement process starts with the expected shelf life, the fill sensitivity, and the real distribution environment. A short-life ambient snack can tolerate a different structure than a retort pouch or a diagnostic strip with multiyear storage. Transparency, microwaveability, and metal-detection passage also change the decision. The best specification is not the strongest film on paper. It is the lowest-cost structure that still protects the product across filling, logistics, retail, and use.
Barrier performance collapses if the rest of the laminate is poorly matched. Nylon may be necessary for puncture resistance in protein packs. Sealant webs may need EVOH or special tie layers for severe MAP service. Lidding applications often require peel systems, anti-fog chemistry, or tray-specific seal layers. Even premium matte finishes can change friction and handling. The barrier web therefore sits inside a larger functional system.
| Product Type | Primary Failure Mode | Barrier Priority | Typical Structure Direction |
Coffee and roasted snacks | Oxidation and aroma loss | Low OTR, good aroma retention | PET / ALOx PET / PE or CPP |
Fresh meat and cheese | Oxygen ingress and purge management | Low OTR plus strong seal performance | PET / ALOx PET / PE-EVOH-PE |
Retort foods | Thermal abuse and post-retort barrier loss | Barrier retention after 121°C cycle | Retort-qualified PET-based laminate |
Diagnostics and pharma | Moisture uptake | Low WVTR with inspection visibility | Transparent high-barrier lid or blister web |
Electronics | Moisture and corrosion | Low WVTR and handling stability | Specialty protective laminate |
Structure selection should match line speed, fill sensitivity, and pack format. PET / ALOx PET / PE remains a common option for coffee, snacks, confectionery, and dry foods. Matte PET / ALOx PET / PE keeps the barrier while changing shelf appearance. PET / ALOx PET / CPP works well in many lidding and flow-wrap systems because CPP supports hot tack and line efficiency. For vacuum and MAP applications, PET / ALOx PET / PE-EVOH-PE adds a strong sealant package with extra gas protection where needed.
Transparent lidding is one of the clearest commercial use cases for ALOx. Brands gain visibility, and processors retain barrier. Easy-peel systems may target peel strength around 800 g/25 mm, but the acceptable window depends on tray material, fill weight, and consumer opening force. APET, CPET, PETG, PP, PS, and PVC trays all require different seal-layer tuning. ASTM F88 is often used to evaluate seal and peel behavior. Buyers should request peel performance across the full sealing window, not just a single lab temperature.
The growth of AlOx coated film applications is tied to recycling-oriented design. BOPP-based ALOx webs support all-PP laminate concepts. PE-centric developments target all-PE routes, although structure design remains more demanding. The tradeoff is straightforward. Mono-material goals improve sorting logic and may support internal sustainability targets, but crack resistance, seal range, and post-conversion barrier retention can become harder to manage. Those structures need pilot validation before commercial approval.
Some BOPP-based grades include a heat-sealable side opposite the barrier. That can remove the need for a separate sealant web in selected overwraps and small-format packs. The advantage is downgauging and simpler construction. The limitation is process window. Buyers should confirm seal initiation temperature, hot tack, and abuse resistance. A reference SIT around 95°C may work well on high-speed lines, but the final fit depends on jaw design, dwell time, and pack geometry.
PET is still the easier platform for high and ultra-high barrier. It offers better dimensional stability in vacuum coating, better optical consistency, and a more forgiving base for retort-capable laminates. PET also helps maintain web flatness and tension control during printing and lamination. When a project requires very low OTR, high clarity, and dependable thermal performance, PET usually enters the shortlist first.
BOPP matters because it lowers package weight and supports all-PP design strategies. That is why many new AlOx coated film uses focus on snack packaging, overwraps, and other formats where downgauging and recyclability targets are strong. BOPP also has inherent moisture resistance and can deliver good aroma retention. The challenge is consistency. Surface engineering, primers, and converting discipline matter more on polyolefin bases than on PET.
A stiff ceramic coating on a soft polyolefin creates elastic mismatch. Under winding or forming strain, the substrate stretches more than the barrier can tolerate. This is why crack onset strain matters. Conventional ALOx may crack around 1.4% ± 0.2% strain. Plasma-assisted systems can delay onset toward 2.0% ± 0.2%. In weaker coatings, OTR failure may begin around 1.2% strain. Improved systems may survive closer to 2.4% ± 0.2%. These are useful screening figures when a supplier claims mono-material robustness.
Buffer layers and engineered undercoats can reduce that mismatch. Thin EVOH-modified skins or specialty primers create a smoother, mechanically better-matched surface for deposition. They improve nucleation uniformity, lower defect formation, and help the ceramic survive downstream handling. This is one reason buyers should ask for the full layer map, not just the word “ALOx.” Two films can both be ALOx-coated and still behave very differently in conversion.
Rough substrate surfaces create nonuniform coating growth. The oxygen barrier may improve dramatically, while moisture barrier improves only modestly because micro-pores remain. Example data shows OTR dropping from 2100 to 26.68 cc/m2/day while WVTR only improves from 6.5 to 4.73 g/m2/day. That gap is a warning sign. Water vapor usually exposes coating defects earlier than oxygen testing does, especially on rougher BOPP surfaces.
EB-cured acrylate systems are often used to fix that weak point. An undercoat can smooth the substrate and reduce RMS roughness from about 4.1 ± 0.3 nm to 1.1 ± 0.1 nm. A topcoat can then fill pinholes and microcracks in the barrier. The effect can be large. Reported results show OTR falling further to around 13.65 and WVTR dropping to about 0.46 g/m2/day. For buyers, this means topcoat chemistry is not cosmetic. It can determine whether the film actually protects moisture-sensitive product.
The highest-risk step is usually lamination. Applying a two-component PU adhesive directly to the ALOx side can damage the barrier through solvent stress, roller shear, and cure shrinkage. In poor setups, OTR can jump toward 183.05 cc/m2/day after lamination. The safer process is usually the opposite route:
Coat the adhesive onto the uncoated sealant web.
Control coat weight and nip pressure tightly.
Laminate the sealant web to the ALOx side gently.
Retest OTR and WVTR after cure, not before shipment.
This method protects the ceramic layer and places it inside the finished laminate.
Dyne level affects both print quality and bond reliability. Functional coated surfaces may ship around 40 dynes/cm. Premium printable top-coated grades can reach about 70 dynes/cm. The number at shipment is only part of the story. Buyers should also ask how quickly the treatment decays and what storage conditions matter. Poor dyne retention can create weak ink anchorage, poor adhesive wet-out, and late delamination complaints.
Converting guidance should never stop at “handle carefully.” A good supplier should specify tension limits, winding hardness ranges, recommended roll build, and expected strain limits through forming collars and seal jaws. That guidance is especially important for ultra-thin structures. If the film only passes flat-web lab testing, the data is incomplete. The converter should review post-lamination flex testing, pouch-making trials, and simulated distribution handling before final approval.
Any team sourcing AlOx coated film for packaging should request a technical package, not a sales sheet. At minimum, that package should include:
Base polymer, gauge range, and coating-side identification
OTR and WVTR with exact test conditions
Barrier retention after lamination, flexing, boil, or retort
Transparency, haze, gloss, and COF
Dyne level at shipment and expected retention period
Printable topcoat details and recommended adhesive route
Seal initiation temperature for sealable grades
Peel data for lidding grades
Roll width, OD, ID, winding direction, and splice limits
Documentation should cover the full intended use. For food packs, buyers typically ask for FDA and relevant EU food-contact declarations. Migration statements should address the finished laminate, not the barrier web by itself. Many global buyers also request REACH, RoHS, and customer-specific restricted-substance declarations. If a supplier claims retort, microwave, or pharmaceutical suitability, those claims should be supported by test records tied to the specific structure.
Commercial approval should follow line trials, not precede them. A practical validation sequence is listed below:
Run pilot lamination on production equipment.
Measure bond strength, seal window, and hot tack.
Retest OTR and WVTR after cure and after flexing.
Check metal detector passage and microwave behavior if relevant.
Pack real product and confirm shelf life under expected distribution conditions.
That sequence catches most hidden failure modes before volume orders begin.
Price per kilogram rarely reflects the true economics of a barrier film. Procurement teams should compare cost per protected square meter, downgrade potential, freight savings, storage density, scrap rate, and EPR exposure. A more stable coating can reduce waste in lamination and pouch making. A lighter structure can lower transport cost. A mono-material path may also support internal design-for-recycling goals. For that reason, the real cost discussion should connect material price to line efficiency and protected shelf life.
Transparency is commercially valuable when brands want visible product, premium shelf appearance, or automated inspection. It supports premium dry foods, clear lidding, tablets, diagnostics, and high-value personal care packs. Those gains are difficult to achieve with foil or opaque metallized films.
Because the barrier is a ceramic oxide rather than a metallic layer, ALOx structures can support microwave heating and pass through metal-detection workflows more easily than foil-based alternatives. Final package testing is still required, but the material platform fits these needs well.
Replacing foil with a nanoscale ceramic barrier can reduce total package mass. That often improves pallet density and lowers transport burden. In packaging programs focused on downgauging, the mass reduction can be substantial without automatically sacrificing barrier.
Many buyers investigate AlOx coated film benefits because humidity stability supports more reliable oxygen protection than some humidity-sensitive alternatives. That stability, combined with strong aroma retention, makes ALOx attractive for coffee, snacks, seasonings, and other oxidation-sensitive products.
Food remains the largest commercial segment. Common AlOx coated film uses include coffee packs, snack bags, confectionery pouches, dry-food laminates, transparent lidding, chilled packs, and selected retort applications. The material fits best where visibility, barrier, and lightweighting must work together.
Transparent high-barrier blister and lid structures allow visual verification while protecting against moisture ingress. That makes ALOx relevant for tablets, diagnostics, and medical device components that benefit from inspection visibility and halogen-free positioning.
Moisture-sensitive electronic components also use transparent high-barrier protective films. The main drivers are low WVTR, corrosion prevention, and handling performance during storage and shipping. Specialty anti-static layers may be added where needed.
Oxidation-sensitive creams, serums, and active formulations can benefit from transparent high-barrier sachets and pouches. These packs balance visible product quality with barrier protection and a lighter material profile than foil-heavy alternatives.

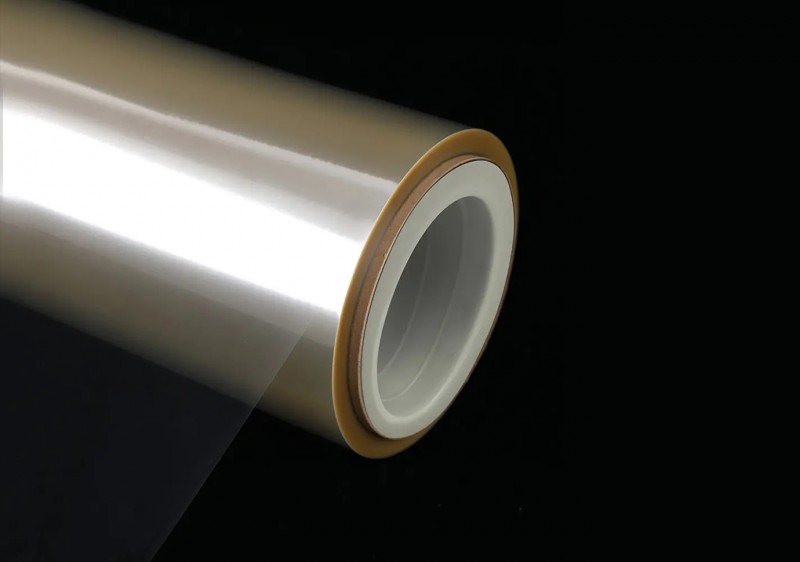

Metalized ALOx film is one of the strongest options for ultra-thin transparent packaging when the project needs barrier, visibility, and lightweighting in the same structure. The deciding factors are not marketing claims alone. They are deposition quality, substrate mechanics, topcoat design, post-lamination performance, and converting discipline.
Request technical data sheets with exact OTR and WVTR test conditions.
Ask for the recommended laminate structure for the target product and shelf life.
Run pilot lamination and measure post-conversion barrier, not just flat-web data.
Verify compliance, retort, microwave, or lidding claims on the final structure.
Compare suppliers on cost per protected square meter, not price per kilogram alone.
A: VMPET uses metallic aluminum, so it is opaque and reflective. ALOx uses oxidized aluminum to form a transparent ceramic barrier. Both can provide strong barrier, but ALOx is better suited to packs that need visibility, microwave compatibility, and easier in-line inspection.
A: The nanometer-thin oxide layer usually does not determine recyclability by itself. The full laminate structure does. BOPP- or PE-based mono-material designs may support recycling pathways more easily than mixed-material laminates, but local collection and sorting rules still control the real outcome.
A: The topcoat protects the thin ceramic barrier from abrasion and roller damage. It also improves printability and adhesive compatibility. In some systems, it helps fill micro-defects that would otherwise raise WVTR and reduce shelf-life performance.
A: Better crack resistance usually comes from denser deposition, smoother undercoats, and tighter strain control. Plasma-assisted deposition, buffer layers, lower web tension, and careful pouch-forming settings all help retain barrier after lamination and package making.
A: That route is usually higher risk. Direct adhesive coating on the ALOx side can damage the barrier through shear, solvent exposure, and cure stress. Many converters get better results by coating adhesive on the opposing sealant web and then laminating it to the ALOx surface.
A: Compliance must be confirmed for the full finished structure. The barrier web alone is not enough. Buyers should review declarations for the film, topcoat, adhesive, ink, and sealant layers, plus migration data relevant to the intended food type and use conditions.
A: They should compare test method, temperature, humidity, and the stage of testing. Pre-lamination values are not enough. The more useful comparison is post-lamination or post-retort barrier on the final structure under the conditions the pack will actually face.
